HDMI TCP/IP Ethernet Extender unlimited Loop Splitter Over Cat5e/6 RJ45 Cable 1080P 100M 328ft Splitter Repeater HDCP IR Sender

HDMI TCP/IP Ethernet Extender unlimited Loop Splitter Over Cat5e/6 RJ45 Cable 1080P 100M 328ft Splitter Repeater HDCP IR Sender
  • Продавецyourartsdesire.us
  • Список ценUS $34.64piece
  • Продажная ценаUS $34.64piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (713)

Oписание продукта

100M 328ft HDMI Extender Over One CAT 5E/6 Cable TCP/IP Technology Splitter Repeater HDCP With IR Loop Control

Ethernet Bandwidth:  100M

Package contents:

"Please choose the iterm you need."



"Transmitter Only" iterm: 1 Transmitter , 1 power adapter. 1 manual

"Receiver Only" iterm:1 Receiver, 1 power adapter. 1 manual

"1 TX 1 RX" iterm:1 Transmitter, 1 receiver, 2 power adapters. 1 manual


Solve the problem of signal transmission source and the display device Long-distance transmission scheme;

At the same time.HDV-E100, can support IR pass-back feature (that is, using the remote control signal Sources);

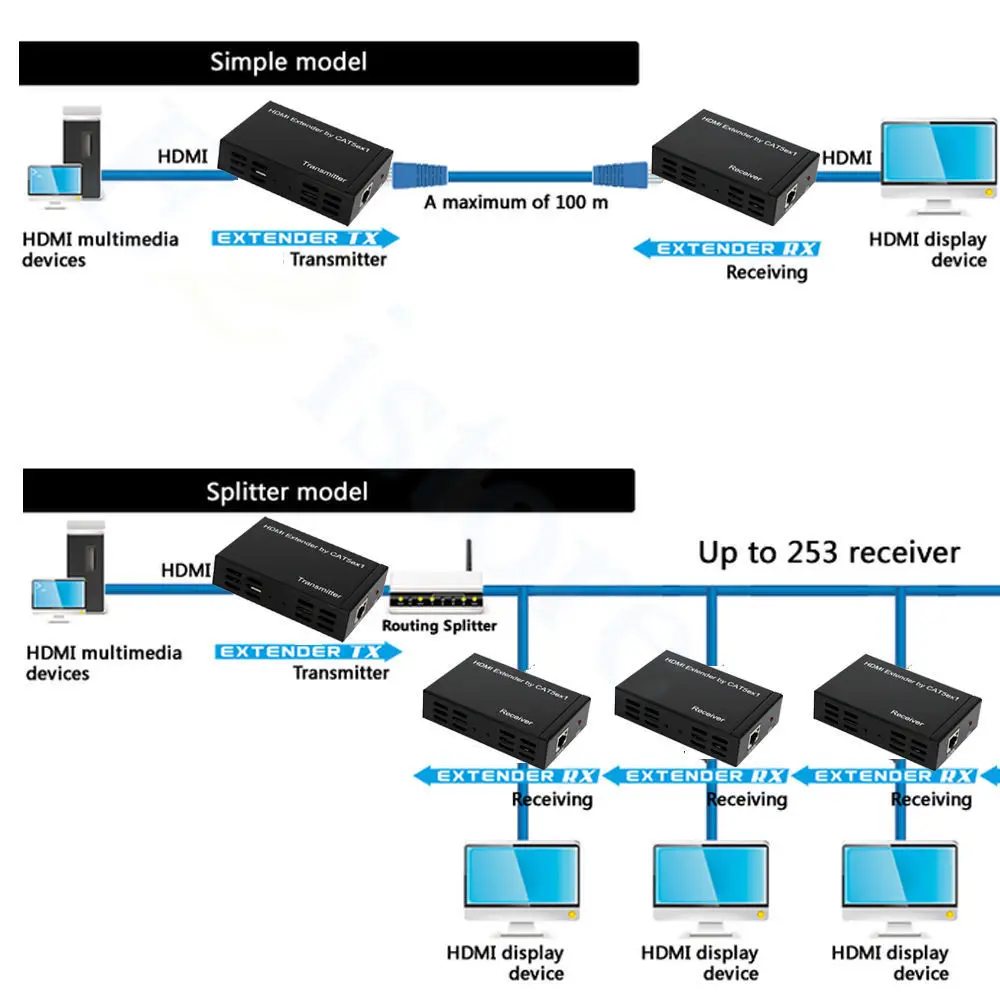

Supports unlimited level function (through the router), support the switch for IP allocation, use of multiple display devices simultaneously;

This HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI transmitter and receiver, over ONE CAT 5E/6 extender is your substantial HDMI extender tool. The HDMI Extender over ONE CAT 5E/6 also support IR re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender.



User manual

I. Introduction
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

II. Features
DC 5V~12V wide power supply.
HDMI 1.3, HDCP 1.1 and DVI1.1 compliant.
Support Deep Color up to 12 bits/color.
Support IR re-transmitting.
Uses one CAT5E/6 cable for data/DDC transmission.
Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away.
When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters.

III. Package
Choice the Type Multi-attribute For what item you want.



  IV. Specifications
Frequency Bandwidth 2.25Gbps (single link)
HDMI Transmitter Input/Output Ports 1x HDMI Female port/1 x CAT6
HDMI Receiver Input/Output Ports 1 x HDMI Female port/1 x CAT6
Power Supply DC 5V~12V
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 65(W) X 100 (D) X 25 (H)
Operating Temperature 0C ~ 40C / 32F ~ 104F
Storage Temperature -20C ~ 60C / -4F ~ 140F
Relative Humidity 20~90% RH (non-condensing)

V. Operation controls and Functions
1.HDMI Extender Transmitter
1) Power: Plug the 5V~12VDC power supply into the unit and connect the adapter to AC wall outlet.
2) RESET KEY: Factory default key.
3) IR OUT: Remote control signal transmit,connect the IR transmit cable with HDMI
Extender Transmitter; The IR transmit cable face to the IR receiver of the Source.
4) HDMI:HDMI Input port.
5) CAT6 OUT: Connect the CAT 5E/6 output of the Transmitter with the CAT 5E/6 input of the HDMI over single CAT6 receiver.
6) LED indicator: When the DC power on, the indicator will be light.


2.HDMI Extender Receiver
1) Power:Plug the 5V~12VDC power supply into the unit and connect the adapter to AC wall outlet.
2) RESET KEY: Factory default key
3) IR IN: Remote control signal Receive,connect the IR receive cable with HDMI Extender Receiver.
4) HDMI Out: HDMI output port.
5) CAT6 IN:Connect the CAT6 in of the receiver with the CAT6 input of the HDMI over single CAT6 transmitter.
6) LED indicator: When the DC power on, the indicator will be light.
