Oписание продукта

30729

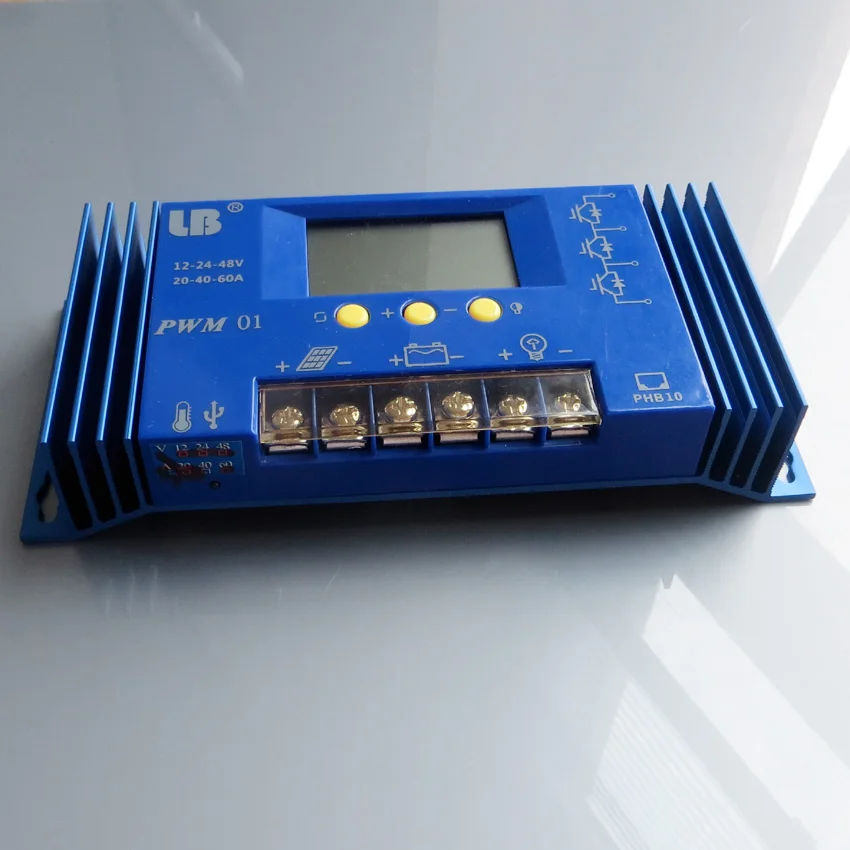

Top Selling of Solar Controller

LB01 series controller is an intelligent, multi-purpose solar energy converters to various types of battery charging and discharging PWM controller. The series uses a custom LCD display, with a very friendly interface, clear, new users can quickly get started. PC monitoring function(optional with extra charge); various control parameters can be set, fully meet your various application requirements.



Features:



LCD display

Simple button operation

Battery type setting, 12V 24V 48 voltage automatic recognition

Charging automatic temperature compensation

Load operating mode can be set

Ah cumulative number of charge and discharge function

PC remote monitoring, charge and discharge curve review (to be customized)

Adjustable charge-discharge control parameters

Boot, anti-shock buffer function overload

Solar panel, battery reverse-discharge protection

Full-featured automatic protection, smart recovery

All-electronic, high reliability since the resumption of insurance



 Specifications:



ModelLB4024LB6024LB6048
Rated Voltage12V 24V auto12V 24V auto12V 24V 36V 48V auto
Rated  current40A60A
Max. PV input power500W(12V),1000W(24V720W(12V),1400W(24V),210W(36V)2800W(48V)
Float charging voltageGel /Sealed /Flooded: 14.5V,   Can adjust  USER: 12.6~15V
Discharge voltage10.5-14.5V    21-29V/42-58V   11-14V/21-29V/42-58V
Low voltage reconnect voltageGel /Sealed /Flooded: 12.5V,
Low voltage disconnect voltageGel /Sealed /Flooded: 10.5V,
Self-consumption≤25mA(12V)  ≤20mA(24V) ≤15mA(48V)
GroundingCommon negative
Temp. compensation-3mV/C/2V
Communication PortRS232 (Optional with extra charge)
Working temperature-35C – +55C
Storage temperature-35C – +80C
Humidity≤95% N.C.
EnclosureIP30
Overall dimension195x82x42mm
Terminal10mm216mm2
