AT4340 40 Channels Thermocouple Temperature Meter Tester with High & Low Beep

AT4340 40 Channels Thermocouple Temperature Meter Tester with High & Low Beep
  • Продавецyourartsdesire.us
  • Список ценUS $930.00piece
  • Продажная ценаUS $930.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,3 (924)

Oписание продукта

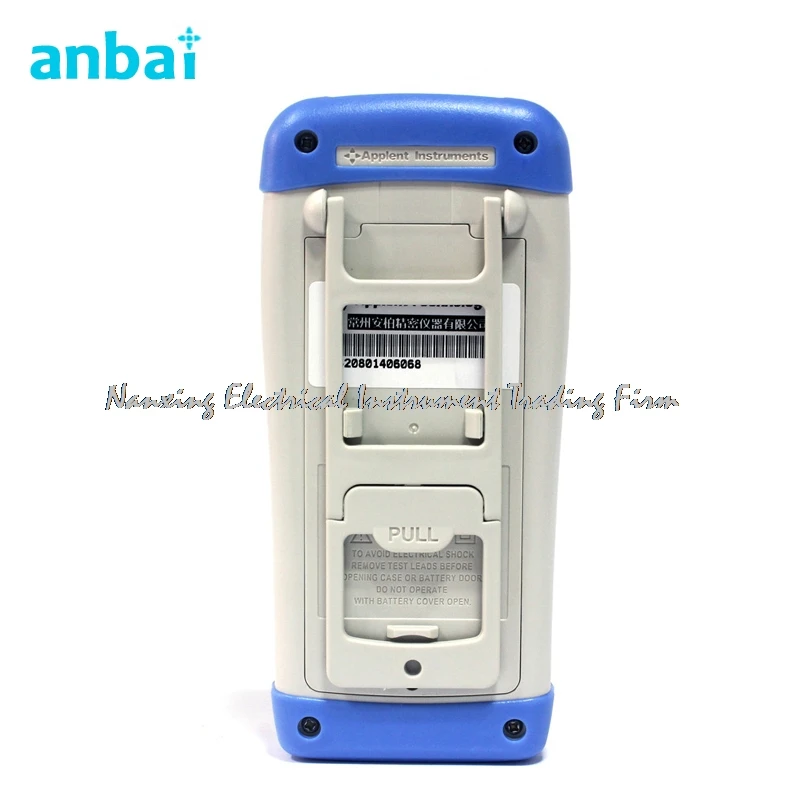

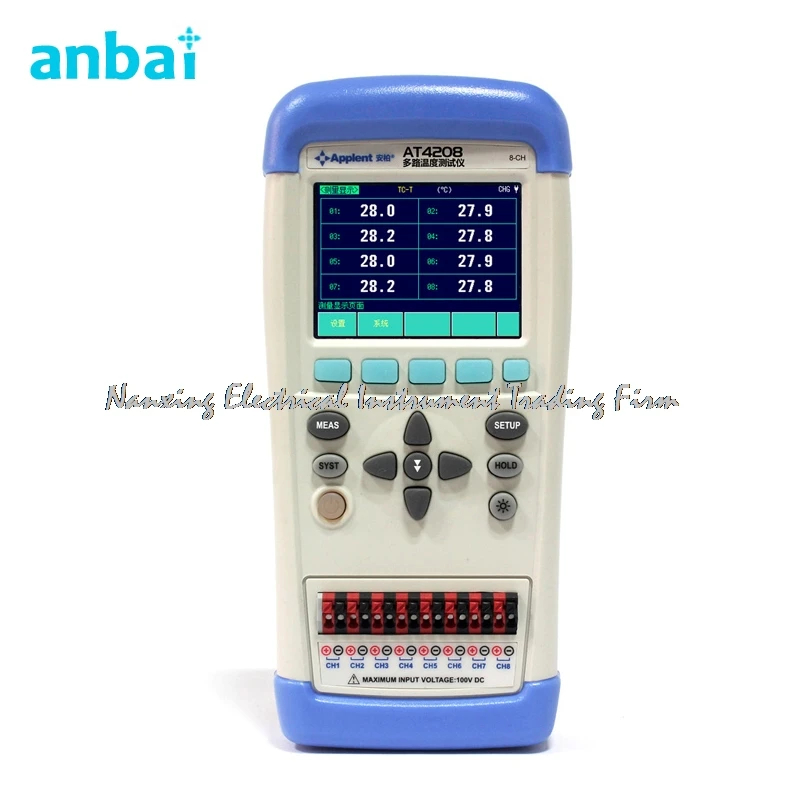

Applent AT4208 Portable Multi-channel Thermometer Thermocouple Temperature Meter Tester

AT4208 handheld multi-channel temperature meter adopts high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly. AT4208 has the function of checking broken thermocouple, high/low beep function and communication transmission. Ultra-low power consumption and high density SMD assembly technology. True-color TFT liquid crystal display, keypad and touch screen double control. It is Li- battery powered. USB communication. Switch in both English and Chinese.
The standard computer software can realize the data analysis.

Feature:
-TFT-LCD True-color LCD display
-touch screen
-Fast,Medium,Low scanning speed
-Cold Junction Compensation
-Mini-USB interface
-The function of broken thermocouple checking
-ATS42 data acquisition software
-8.4V, Li battery powered

Application:
-Apply to home appliance,motors,heating appliance,temperature controller,transformer,oven,thermal protector,power supply,lighting,electric power,LED and so on.

Specification
GraduationThermocouple:J/K/T/E/S/N/B
Accuracy0.2%+1°
Range-200C~1300C(variation depend on graduation)
Resolution0.1C
Channels8 channels
SpeedFast:100ms/channel Medium:500ms/channel Low:1s/channel
CorrectionError correction for each channel
ComparatorHigh & low beep function
InterfaceMini-USB
High & low beep function
Cold JunctionAccuracy:0.5°
2.8 inches True-color 16M TFT-LCD LCD display, touch screen, USB communication, compatible SCPI instruction set, switch in both English and Chinese;adjustable back light; automatic power off
Input:100-240V~50/60Hz 0.35A Output:9V 1A DC
8.4V, Li, 1400mA rechargeable battery

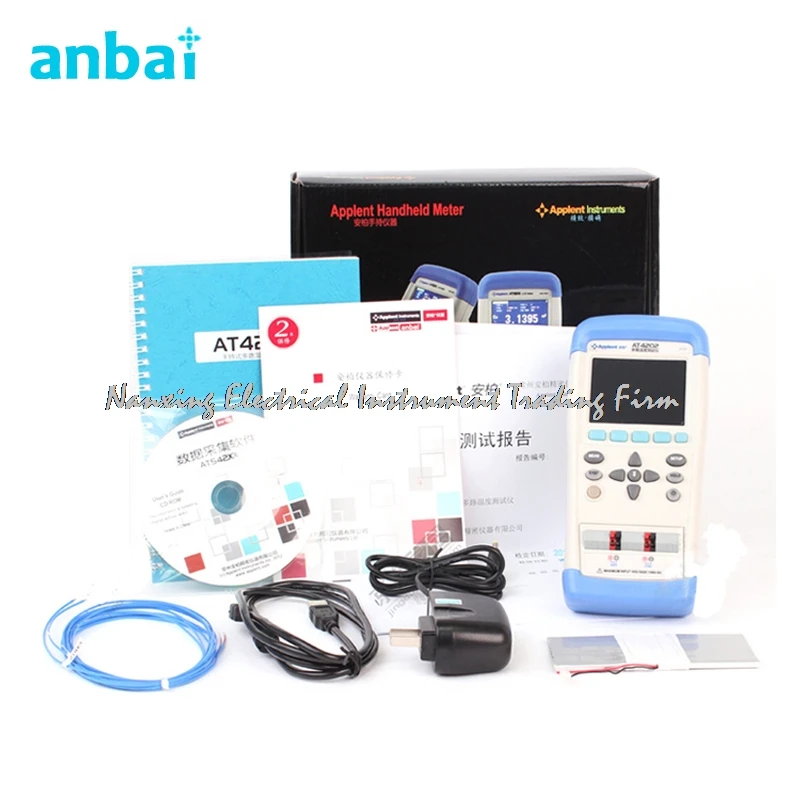

T thermocouple 8 teams(2m/team) ATL909: DC power adaptor ATL805: Lithium battery ATL105Mini-USB communication cable ATS42 data acquisition software
