Oписание продукта

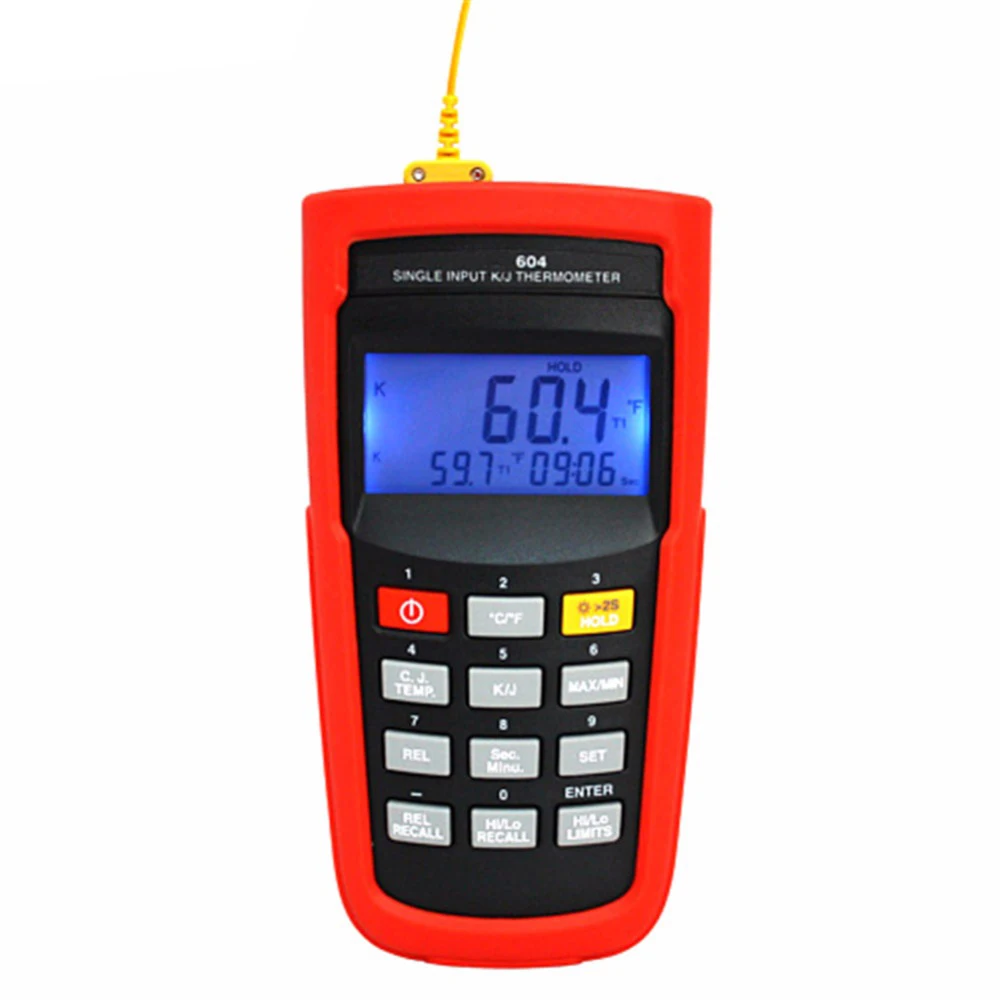

TASI-604 K-TYPE or J-TYPE Single Channel Thermocouple Thermometer meter



Product Display

HTB1MZq7o3KTBuNkSne1q6yJoXXacHTB1oaO7OFXXXXbAXVXXq6xXFXXXmTB2PVybapXXXXaRXXXXXXXXXXXX_!!1907996252HTB1N5DpPpXXXXbIXFXXq6xXFXXXq

Product Features

"Single input.

K/J-type thermocouple function.
MAX/MIN/AVG/REL/REL Recall.
RECALL, HOLD function.
Warning beeper with HI/LO setting, Hi/Lo RECALL.
ºC/ºF user-selective.
Resolution 0.1ºC or 0.2ºF.
TIME setting, REL setting.

Thermocouple Range
 J-TYPE:-200°C to 1050°C, (-328°F to 1922°F)
 K-TYPE:-200°C to 1370°C, (-328°F to 2498°F)
 Input channel
 Single channel
 Accuracy
 ±(0.05%rdg + 0.3°C) -50°C to 1370°C
 ±(0.05%rdg + 0.7°C) -50°C to -200°C
 ±(0.05%rdg + 0.6°F) -58°F to 2498°F
 ±(0.05%rdg + 1.4°F) -58°F to -328°F
 Temperature Coefficient
 0.1 times the applicable accuracy specification per°C from 0°C to 18°C and 28°C to 50°C (32°F to 64°F and 82°F to122°F).
 Input Protection
 24V DC or 24V AC rms maximum input voltage on any combination of input pins.
Maximum Differential Common Mode Voltage (Maxi-mum Voltage T1 during measurement):1volt.
 Input Connector
 Accepts standard miniature thermocouple connectors (flat blades spaced 7.9mm, center to center).
 Resolution
 0.1°C or 0.2°F
 Display
 5 digit liquid crystal display (LCD)
 Sampling rate
 1 time/second
 Overload
 “----.-” or “OL” is display
 Low battery indication
 The “+ -”is displayed when the battery voltage drops below the operating level
 Auto power off
 30 minutes, press power key to resume operation.
 Backlight display
 Yes
 MAX/MIN/MAX-MIN/AVG/REL
 Yes
 Relative value Recall
 Yes
 REL measurement mode
 Yes
 Hi/Lo Limits/Recall
 Yes
 Data hold function
 Yes
 Time unit selection
 Yes(second/minute)
 Input Thermocouple Type Selection
 Yes(K/J type)
 APO function
 Yes
 Power
 1.5V*4pcs AAA size(Not include Battery)
 Working Temperature
 0ºC to 50ºC(32ºF to 118ºF) <80% R.H.
 Deposited Temperature
 -20ºC to 60ºC(-4ºF to 140ºF) <70% R.H.
 Dimensions
 160mm(H)x83mm(W)x38mm(D)
 Weight
Approx.270g
 Standard Accessories
Manual, K Type Temperature Probe
 "
