MiraBox HDMI RJ45 Extender HDMI Receiver Sender Over TCP/IP IP RJ45 Ethernet Cable Cat5e Cat6 HDMI Audio Extender Like Splitter

MiraBox HDMI RJ45 Extender HDMI Receiver Sender Over TCP/IP IP RJ45 Ethernet Cable Cat5e Cat6 HDMI Audio Extender Like Splitter
  • Продавецyourartsdesire.us
  • Список ценUS $38.99piece
  • Продажная ценаUS $38.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,3 (946)

Oписание продукта

MiraBox HDMI RJ45 Extender HDMI Receiver Sender Over TCPIP IP RJ45 Ethernet Cable Cat5e Cat6 HDMI Audio Extender Like Splitter (5)

MiraBox HDMI RJ45 Extender HDMI Receiver Sender Over TCP/IP IP RJ45 Ethernet Cable Cat5e Cat6 HDMI Audio Extender Like Splitter

 Product  Introduction



      This product not only can work as other normal HDMI extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network.
       The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km.

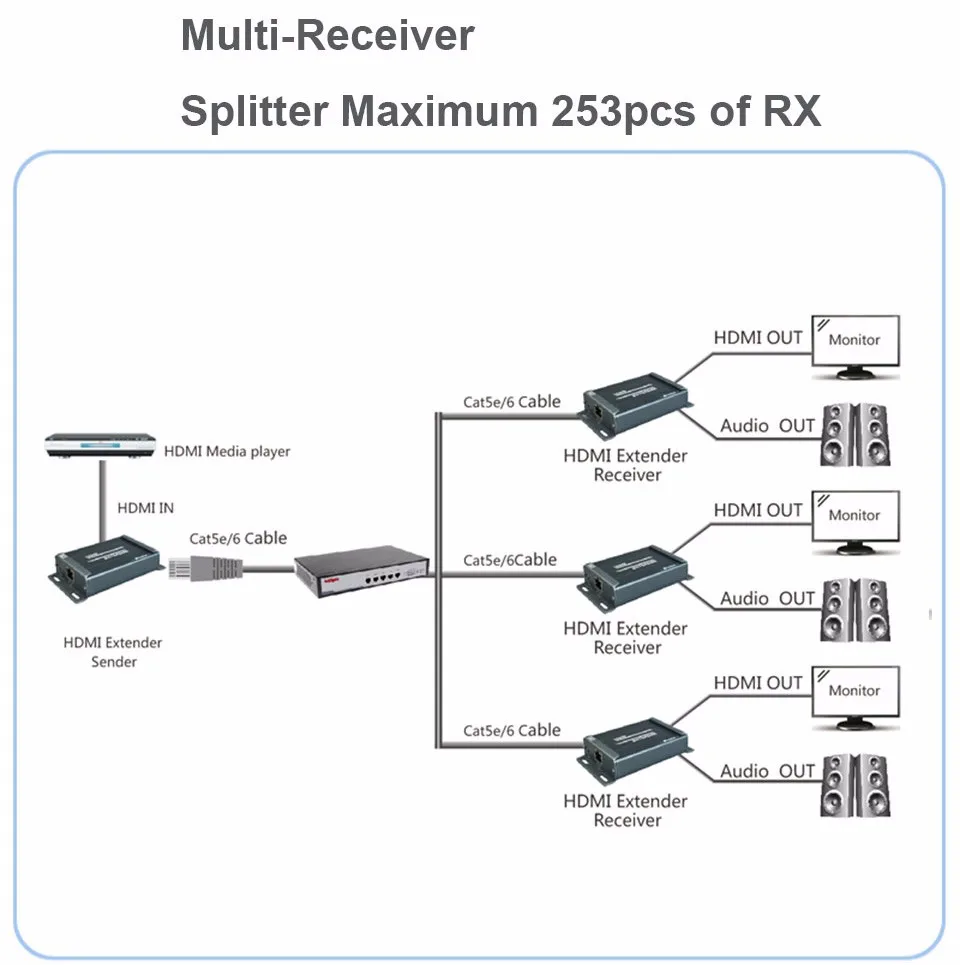

      It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.
      1.HSV891 also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket.
     2.HSV891 have many professional designs which suitable for various application scenario, especially for engineering project usage. Such as 5V-12V wide range power supply, mountable aluminum alloy shielding.
MiraBox HDMI RJ45 Extender HDMI Receiver Sender Over TCPIP IP RJ45 Ethernet Cable Cat5e Cat6 HDMI Audio Extender Like Splitter (4)

Features

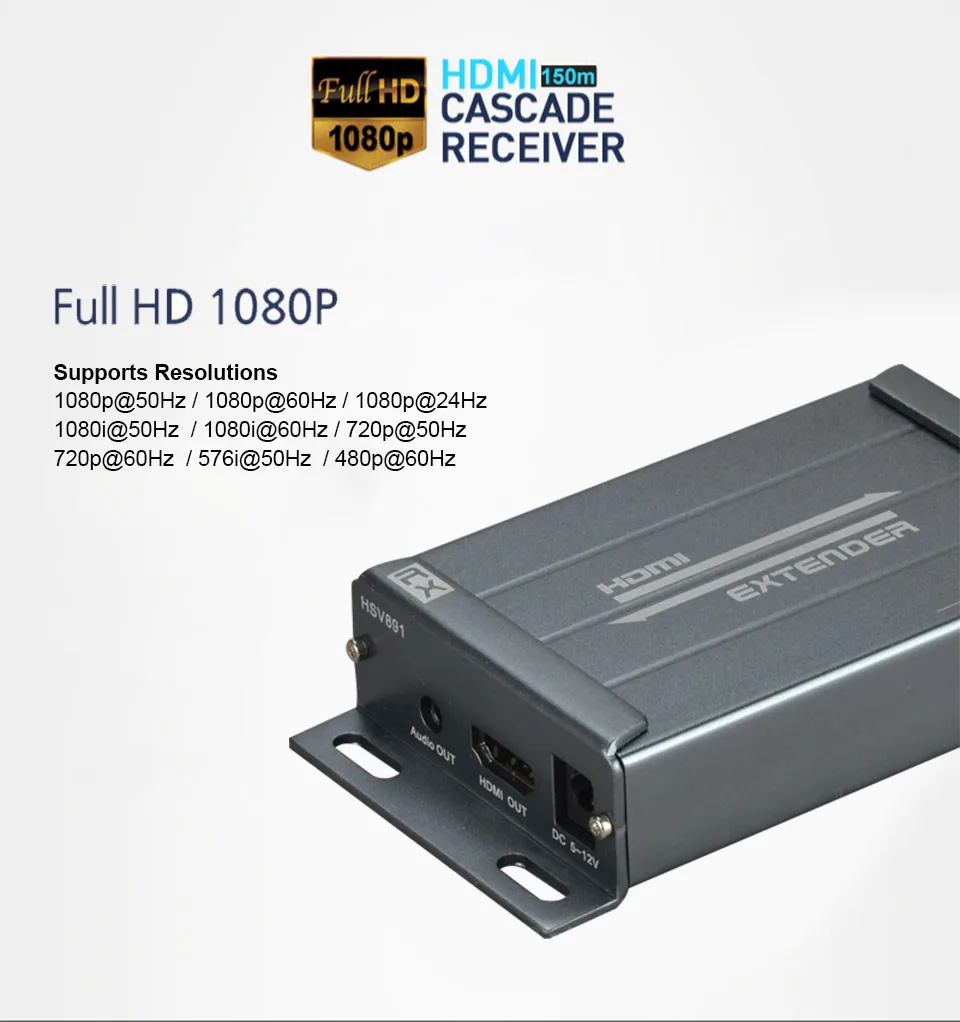

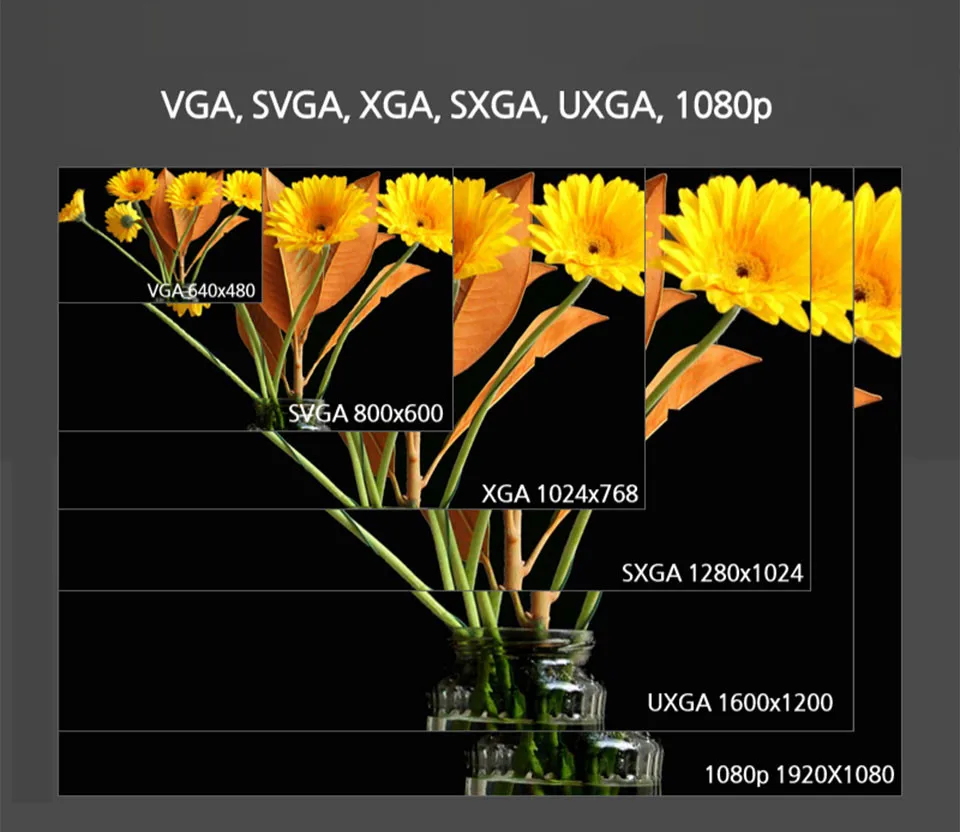

1. Apply M-JPEG technology to process image compressing.The loss of image quality is very small;Supported HDMI format:[email protected],[email protected],[email protected],[email protected],[email protected]/60Hz,
[email protected]/60Hz,[email protected]/60Hz [email protected]   .
2. Powerful processing capability keep lower video latency < 150ms.
3. HDCP compatible.
4. It can transmit HDMI 1080P signal to above 120m by using UTP Cat5e/6.
5. It can transmit by Lan.
6. Support Lan bandwidth: 100M
7. Extend 120m longer by adding one more ethernet router
8.The data could be transmitted over switch, router and other ethernet device,and extend the transfer distance to over 20km.
9. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.
10. Integrated HDMI audio extractor output HDMI audio.
11. Supports 5V-12V wide range power supply.

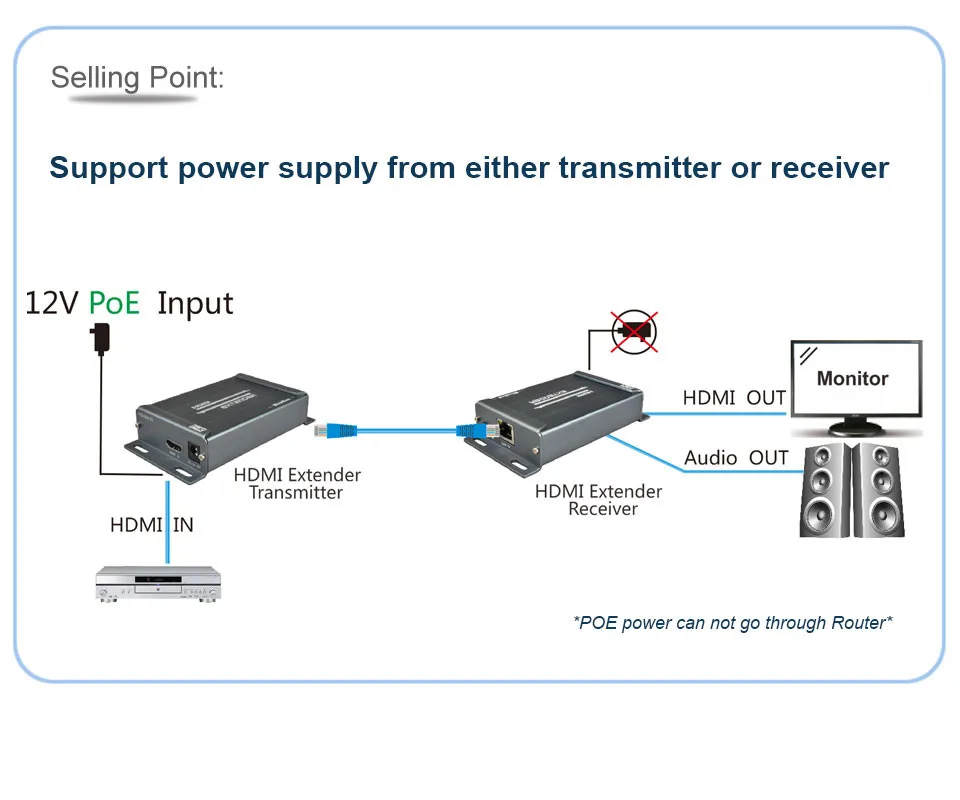

12. Supports PoE function over maxim 120meter.






Specifications:

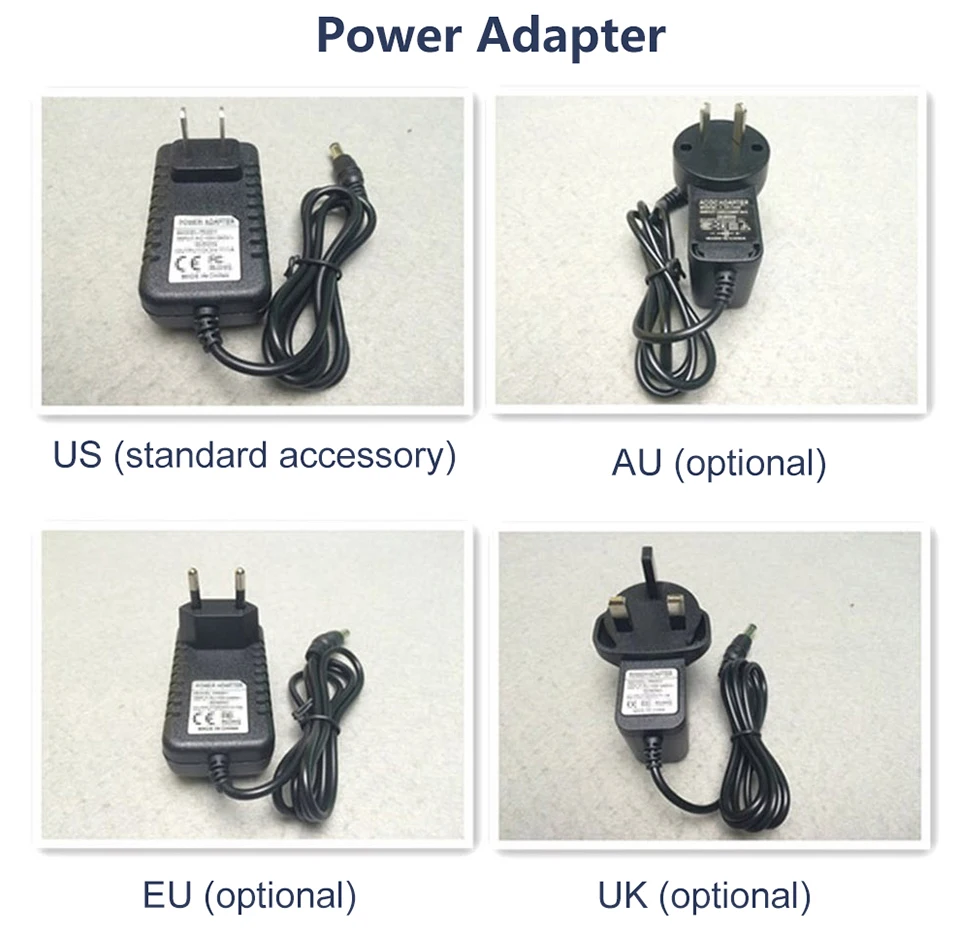

Power Supply:1pc X DC 5~12V/1A



Working Temperature: -10°C ~ 60°C

Link Connection: UTP/STP CAT5/5e/6

3.5mm Audio Output:  60mW THD<0.1% SNR 110dB

Power Consumption:  3W(max)each

Working Mode:
                        *Point to Point mode

                       *Broadcast mode( Point to MultiPoint)

                       *Cascade mode

Transfer Distance:

 *Point to Point Mode:
                                  CAT5  100meters

                                  CAT5e 120meters

                                  CAT6  150meters
*Cascade Mode:
                         20Km maximum
*PoE Distance:
                       CAT5  [email protected]

                       CAT5e [email protected]

                       CAT6  [email protected]

Relative Humidity: 20% ~ 90% RH(Non-condensing)

Dimensions: 123x64x25mm

Weight :110g

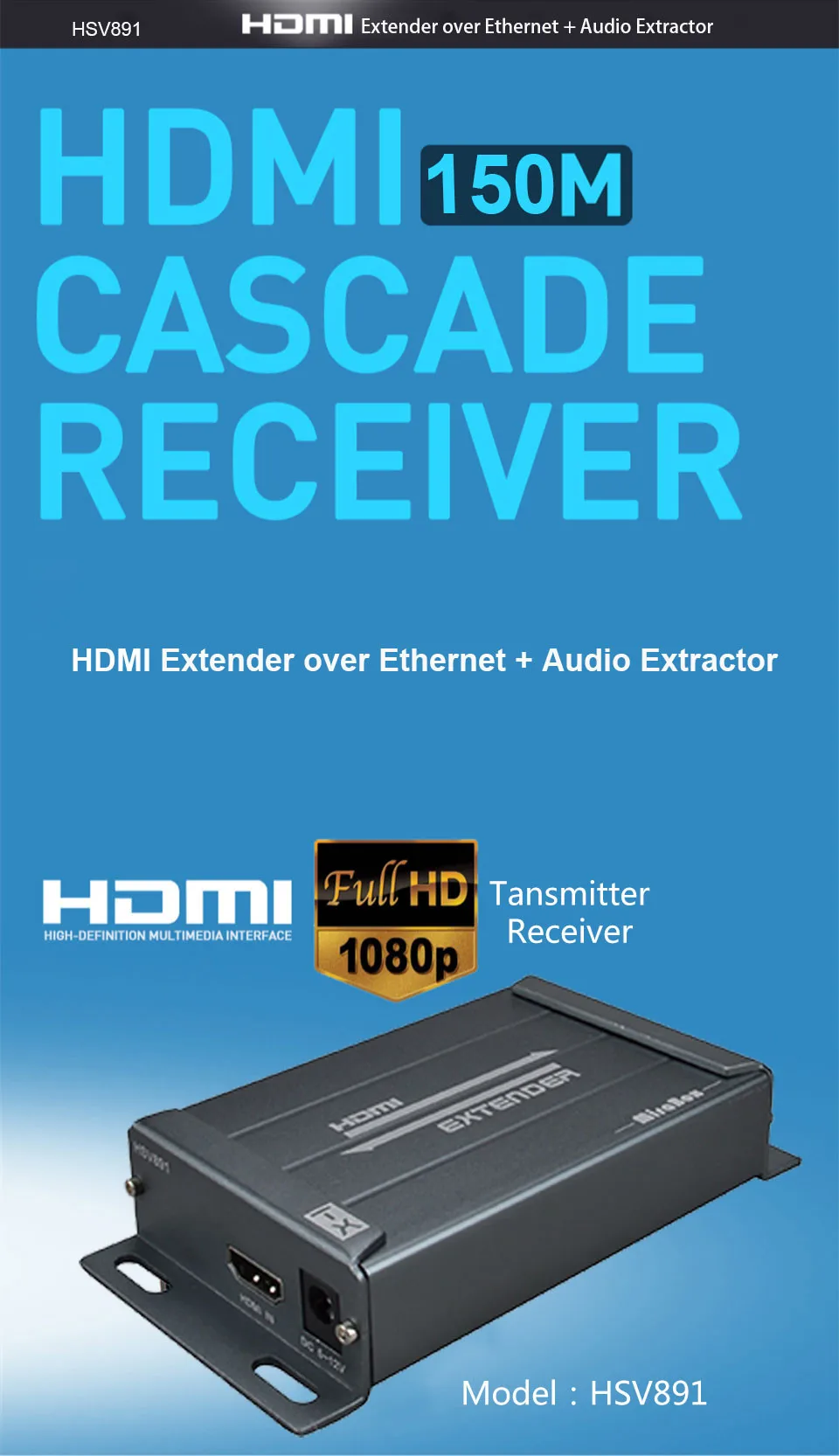

Product Picture:
MiraBox TCP IP HDMI Ethernet Extender 120m over Cat5 to UTP STP Rj45 Network HDMI Transmitter and Receiver via Cat5e Cat6 LAN (7)



HTB1_3qlKVXXXXaFXVXXq6xXFXXXiHDMI EXTENDER HSV891_6HDMI EXTENDER HSV891_02HDMI EXTENDER HSV891_01HDMI EXTENDER HSV891_011HDMI EXTENDER HSV891_010HDMI EXTENDER HSV891_9HDMI EXTENDER HSV891_8
MiraBox HDMI RJ45 Extender HDMI Receiver Sender Over TCPIP IP RJ45 Ethernet Cable Cat5e Cat6 HDMI Audio Extender Like Splitter (1)MiraBox HDMI RJ45 Extender HDMI Receiver Sender Over TCPIP IP RJ45 Ethernet Cable Cat5e Cat6 HDMI Audio Extender Like Splitter (2)MiraBox HDMI RJ45 Extender HDMI Receiver Sender Over TCPIP IP RJ45 Ethernet Cable Cat5e Cat6 HDMI Audio Extender Like Splitter (3)MiraBox HDMI RJ45 Extender HDMI Receiver Sender Over TCPIP IP RJ45 Ethernet Cable Cat5e Cat6 HDMI Audio Extender Like Splitter (4)
