12.8V 90AH LiFePo4 LFP Lithium iron Phosphate Battery Pack with BMS Board 1000A CCA for Car Battery Long Life Deep Cycles

12.8V 90AH LiFePo4 LFP Lithium iron Phosphate Battery Pack with BMS Board 1000A CCA for Car Battery Long Life Deep Cycles
  • Продавецyourartsdesire.us
  • Список ценUS $348.19piece
  • Продажная ценаUS $348.19piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,9 (1000)

Oписание продукта


Please attention for every customer : our battery pack can be customized , you offer the size and desigh photo we supply you good quality goods !   t

If customer customize the goods with size and capacity , we may need at least 7 days lead time .  the size and weight we give as the reference !

Here is our battery pack 12.8v 90ah Specifications as reference !  (Attention: our 12v battery pack cannot make in series when voltage pass 30V , or the BMS will be broken )





Cell

model

48174126

Capacity

90ah

rated voltage(V)

3.2V

Typical Impedance (mΩ)

≤1.2mΩ

 Battery material

LFP



PACK

Combination method

4 Series 1 Parallel

Minimal capacity

>90ah

Nominal voltage

12.8V

Max. charge voltage

14.8V

Discharge cut-off voltage

≤10.5V

Max Continuous Charge current

50A

Max Continuous Discharge current

250A

Instantaneous Current (3 seconds)

1000A

Weight (Approx.)

12KG

Max. dimension(L×W×H)(mm)

355*176*187mm



Operating  temperature

Charge temperature

0℃~45℃

Discharge temperature

-10℃~55℃

Protection Board (BMS)

Single cell over-charge cut-off voltage

3.85V

over-charge release voltage

3.65V

Single cell under-discharge cut-off voltage

2.3V

Discharge release voltage

2.5V

Over-discharge cut-off current

250A

Over-discharge cut-off current delay

1.5S

Short-circuit protection

Yes

Short-circuit protection delay

500uS



Condition for the recovery of over-current and Short-circuit

self

Balance current

45mA

Balance Condition

3.60V

communication

NO

Attention : this kind of battery pack for auto emergency power supply have instantly starting current more than 1000 ah , it can suit for most kinds of vehicles .we are aim for making the best quality battery pack . Reasonable price and high quality !

Main uses:

Large electric vehicle: vans,motor home, caravan ,electric golf carts, buses, electric cars, sightseeing cars and hybrid vehicles DIY

Light electric vehicle: electric bicycle, small flat electric car, forklift, cleaning vehicles, electric wheelchair

Power tools: electric drill, electric saw, lawn mower

Remote control cars, boats, aircraft and other toys

Solar and wind power energy storage equipment

UPS and emergency lights, warning lights, miner\'s lamp (best safety) all can sent by battery pack .

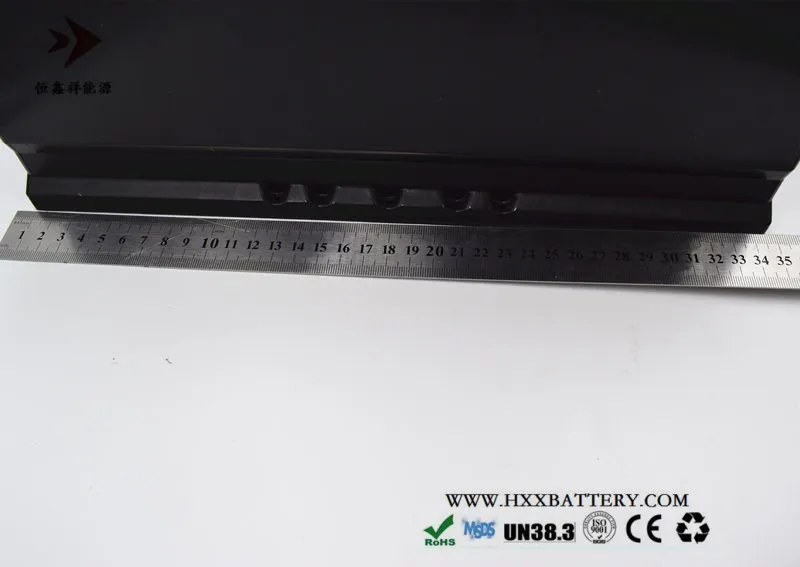

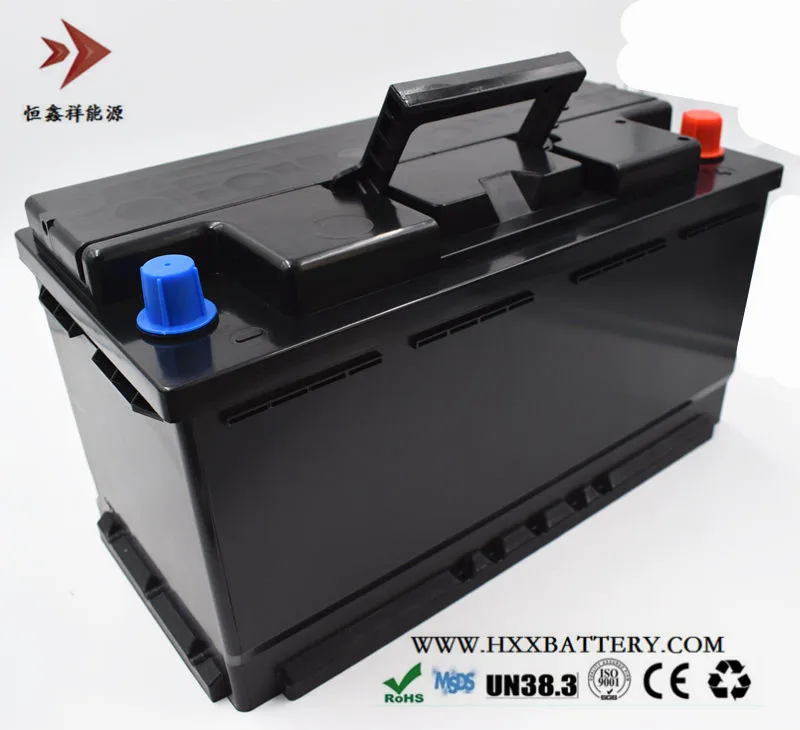

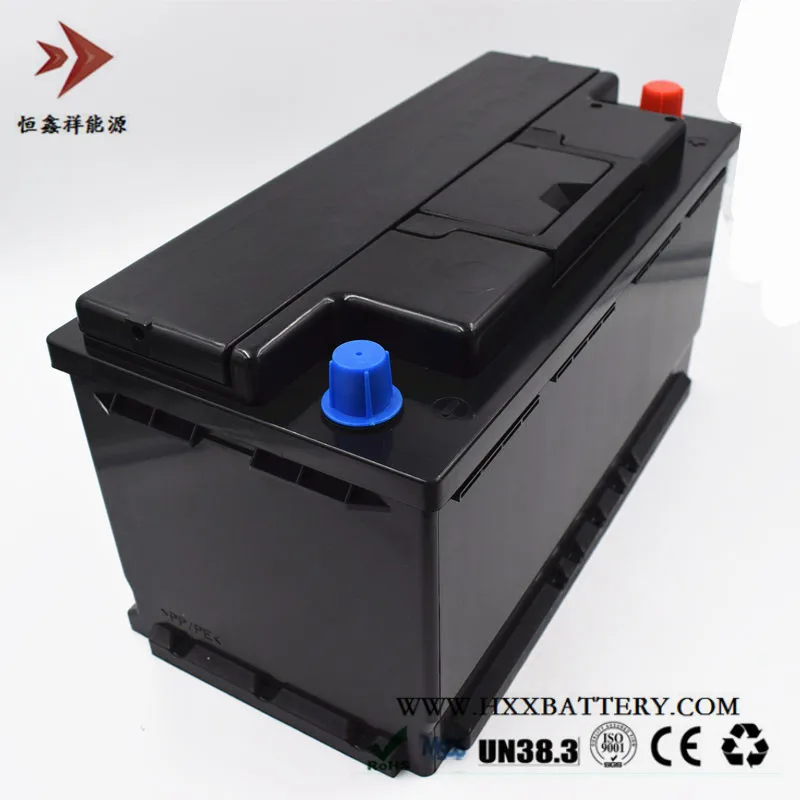

Our advantages : we make it by our own factory (Battery Detail Pictures )

ABS case ,2 bronze terminals , BMS board inside , Lithium Iron phosphate Cells ;

60038 0825__600383__600384__600387__600389__6003810__6003811__

About Prices : Dear Customers ,if you wanna to be our long business partner , contact leave us your message whatapps , telephone ,skype ,email box , etc

Shipping

1. we usually send out battery by international commercial express, UPS ,FedEx ;but now battery belong to some dangerous goods in some countries , so we send them by special line .

2. It takes 5-10 days by express send to destination ( not including the Lead Time ) ,if send by special line may takes more than 20 days .

​3. Battery goods belong to sensitive items , we produce the best battery , so welcome customer come to our warehouse
